Aligned with the PC-based control to provide latest processors, flexibility and mainstream Ethernet fieldbus, Advantech provides solutions to machine makers and system integrators. With the support of EtherCAT open standard protocol, users can leverage fast cycle time for high performance synchronous motion control. |
|
|
|
|
|
| Advantech EtherCAT Features |
 |
|
|
 |
| Real Time |
| • |
32 synchronized axis control, communication
cycle = 500us |
|
| • |
High speed I/O communication cycle = 200us |
|
|
|
|
 |
| Precision |
| • |
Embedded RTOS, satisfies real-time motion
control requirements |
|
| • |
Basic script programming allows motion and
logic control to run on hardware core |
|
|
|
|
|
|
 |
| Simplicity |
| • |
Dedicated API that satisfies rapid development
requirements |
|
| • |
Powerful SoftMotion functions designed
specifically for vertical industry applications |
|
|
|
|
 |
| Integration |
| • |
Supports 3rd party EtherCAT servo/stepping
motors |
|
| • |
Connect EtherCAT slaves automatically, without ESI files |
|
|
|
|
|
|
|
|
| Application samples |
|
|
|
 |
|
LED Chip Sorter
In this high-speed pick & place application, PCI-1203 provided a "Torque Limit Table" function to ensure that rapid pick and place processes did not cause the eject needle to damage delicate LED dies. |
|
|
|
|
|
|
|

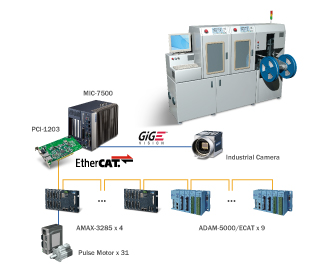

Integrated IC Packaging Machine
To deal with faster and more powerful chip technology, semiconductor process linewidth technology has continued to evolve down to the nano level, and the back end of semiconductor processes also needs to provide shorter production cycles in order to increase production throughput per unit of time. |
|
|
|
|
 |
|
|
|
|
| EtherCAT product offerings |
|
|
|
|
|
|
| MIC-7500 |
| • |
Intel® 6th Generation Core™ i7/i5/i3 BGA
type CPU with Intel® QM170 PCH |
|
| • |
I-Module expansion module |
|
|
|
|
| MIC-7900 |
| • |
Intel® Xeon® Processor D-1539/D-1559 SoC CPU |
|
| • |
Supports full range of i-modules |
|
|
|
|
| UNO-3283G |
| • |
6th Generation Intel® Quad Core
Processors, up to 2.0 GHz with 8GB
DDR4 Memory |
|
| • |
2 x GbE, 6 x USB 3.0, 2 x RS-232/
422/485, 1 x RS-422/485 (pin header),
ƒ1 x DVI-I, 1 x HDMI |
|
|
|
|
 |
|
Master |
 |
|
 |
| PCI-1203 |
| • |
Supports up to 32-axis and huge I/O points by motion cycle time =
500us & I/O cycle time = 200us |
|
| • |
Powerful embedded SoftMotion engine |
|
| • |
Basic script language for deterministic control |
|
|
|
|
|
|
Motion Slaves |
|
 |
I/O Slaves |
|
|
|
|
| AMAX-3285 |
| • |
8 EtherCAT axes to pulse module
connecting to pulse-type servo/
stepping motors |
|
| • |
Supports multi-axes, compare trigger,
and position latch |
|
|
|
|
| |
| AMAX-4800 Series |
| • |
Up to 32-channel digital input/output
module |
|
|
| • |
Terminal board (DIN-Rail) |
|
|
|
|
| |
| ADAM-5000/ECAT |
| • |
32 channel digital input/output module |
|
|
| • |
Terminal board (DIN-Rail) |
|
|
|
|
|
|
|
|
|
|
|
